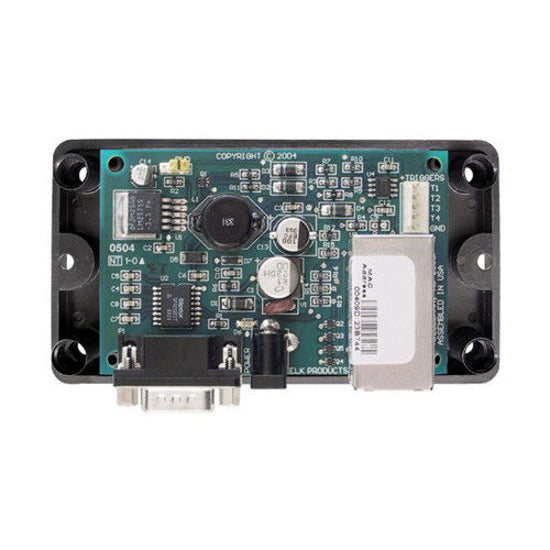

Ness M1 Ethernet Module M1XEP 101-215 (required for mobile app)
Ness M1 Ethernet Module M1XEP 101-215 (required for mobile app)
Regular price
$470.09 AUD
Regular price
Sale price
$470.09 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Share
Description
The Ness-M1XEP is an Ethernet module with an RS-232 Serial Port Interface. It may be used to connect a control in the M1 Family to an Ethernet network. It features email event notification and FIPS compliant encryption algorithms for security-sensitive environments.
A software setup utility is built into ElkRP for configuring the connection setup, network password, etc. The M1 Ethernet Interface is factory defaulted to obtain a dynamic IP address from a DHCP server (i.e. router, cable modem, etc.). It may optionally be set up with a static IP address.
Features
- Secure connection with password protection and SSL/TLS encryption
- Flash Memory for Firmware Updating
- Event notification via E-Mail (SMTP)
- Supports automatic Dynamic DNS Updates with providers using the DynDNS protocol.
- Supports Network Time Protocol for synchronizing the M1/EZ8's clock with an Internet time server.
- Internet Monitoring and Reporting Capability
- Network stack supporting the following protocols:
- Federal Information Processing Standards (FIPS) 128-bit encryption
- Integrated 802.3 compliant 10/100 Mbit network interface
- RS232, DB9M 9-pin serial port connection
- Connects to the M1 RS-232 Serial port (Port 0). The baud rate for this port must be set to 115,200 (factory default)
- RJ45 8-pin Network Jack
- 2.1mm barrel-type power connector (centre positive)
- LED Indicators for Power, Link, and Data
- A web server with embedded Java applet "M1 Virtual Keypad"
- Secure connection with password protection and HTTPS encryption
- Flash Memory for Firmware Updating
- Event notification via E-Mail (SMTP)
- Internet Monitoring and Reporting Capability
- TCP/IP stack supporting the following protocols: TCP,UDP,DHCP,SSL 3.0/TLS 1.0, HTTP, SMTP
- Federal Information Processing Standards (FIPS) 128-bit encryption
- Integrated 802.3 compliant 10/100 Mbit network interface
- RS232, DB9M 9-pin serial port connection
- Connects to the M1 RS-232 Serial port (Port 0). The baud rate for this port must be set to 115,200 (factory default)
- RJ45 8-pin Network Jack
- 2.1mm barrel-type power connector (centre positive)
- LED Indicators for Power, Link, and Data
Specifications
- Operating Voltage: 12 Volts D.C.
- Current Draw: approx. 300 mA
- Housing Dimensions: 4.25" x 6.375" x 2.125"
- Circuit Board Dimensions: 2.25" x 3.95"
