Paradox Alarm Kits & Components

Choose from ready-to-install kits or mix and match individual components to suit any home or commercial project.

If you’d like live guidance on your mobile or PC, schedule a session with our team.

Customer SchedulerPartner Scheduler

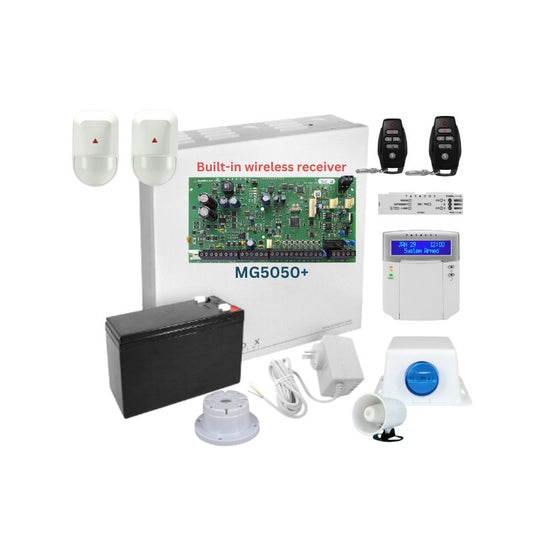

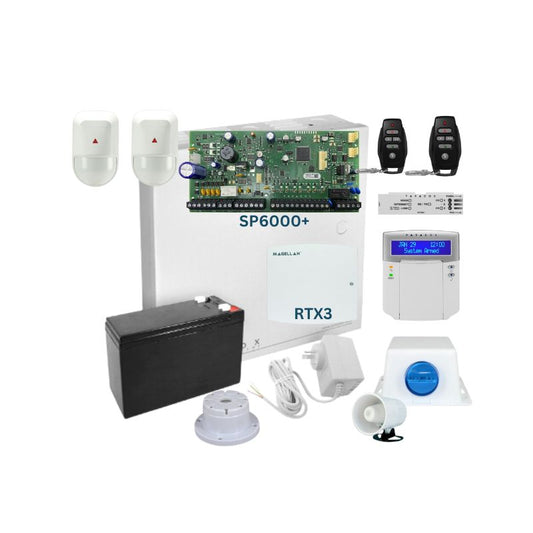

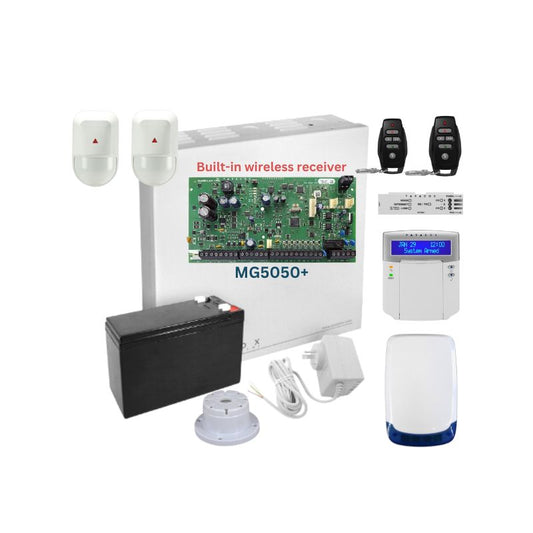

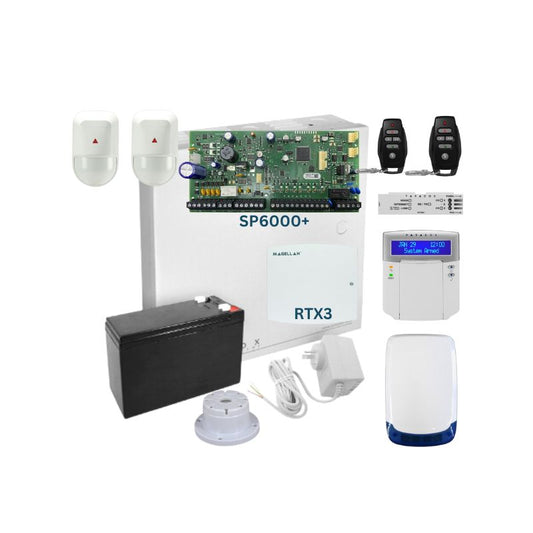

Paradox Ready Kits

These are pre-assembled kits for fast ordering. You can use them as-is or add extra items if required.
The Paradox IP150+ module is required to enable remote access and control through the Paradox BlueEye mobile app.

1 10

Premade Network Cables & Access Points

Any network cable (premade or standard) can connect the IP150+ module to your internet router for mobile app access.
For WiFi connectivity, use a wireless access point.

1 16

Standard Network Cables

1 3

Security Cables

Select the cable type and length required for your installation.

  • Sensors and keypads: Use a 4-core cable.
  • Internal siren: Use Fig. 8 or 4-core cable.
  • External siren: Use 4-core + Fig-8, two 4-core cables, or a single 4-core cable if the tamper is not used (not recommended).

For longer runs in larger residential or commercial installations, 14/0.20 cable is recommended.
For environments with potential electrical noise or interference, use screened cables in the next section.

1 10

Screened Security Cables

1 6

CustomLink Pre-Configuration Service

We can fully pre-configure the system before dispatch, including app setup.

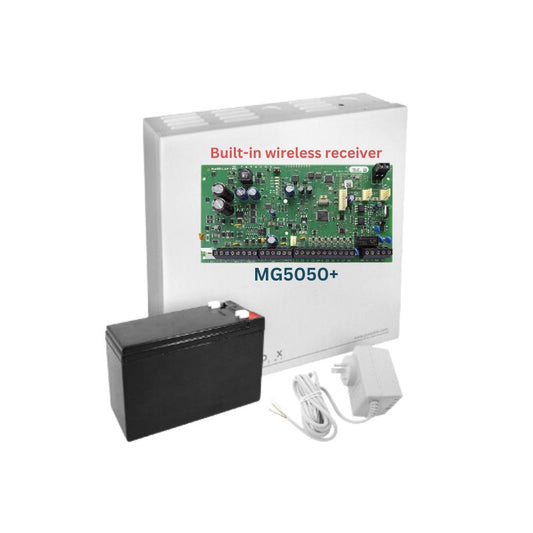

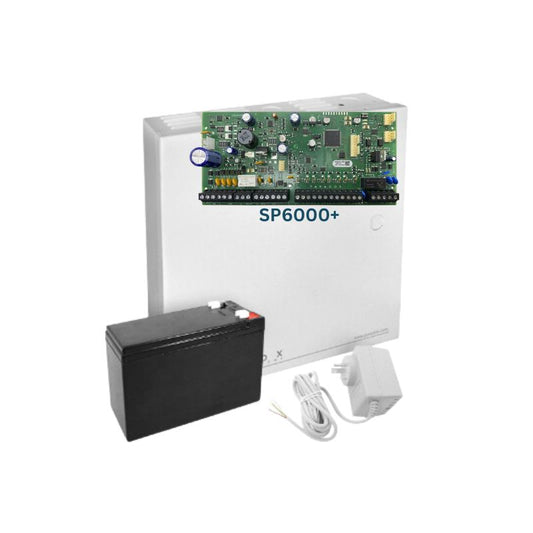

Paradox Boards

The Paradox IP150+ module is required to enable remote access and control through the Paradox BlueEye mobile app.

1 10

Paradox Enclosures

1 6

Power Supplies & Backup Batteries

1 8

Paradox Hardwired Keypads

You will need at least one keypad, LCD, or touchscreen for system programming and everyday operation. Additional keypads of any type may be added as required.

A total of up to fifteen 4-wire modules (including keypads) can be connected to the main board. However, the combined current draw of all connected devices must not exceed the main board’s available current.

For an 8-detector system, the following keypad combinations are generally considered safe without requiring an additional power supply:

  • 1 × 7" touchscreen
  • 1 × 5" touchscreen
  • 1 × LCD
  • 2 × LCD
  • 1 × LCD and up to 2 × LED
1 8

Hardwired Sirens & Relays

1 9

Paradox Hardwired Indoor Detectors

1 6

Other Hardwired Indoor Detectors

1 7

Paradox Hardwired Outdoor Detectors

1 3

Other Hardwired Outdoor Detectors

1 5

Other Compatible Hardwired Reed Switches

1 7

Paradox Wireless Receivers and Remotes

1 6

Paradox Wireless Detectors

1 9

Other Paradox Wireless Devices

Other Kits & Components

If you require a system or combination that is not shown here, please request a quote.
