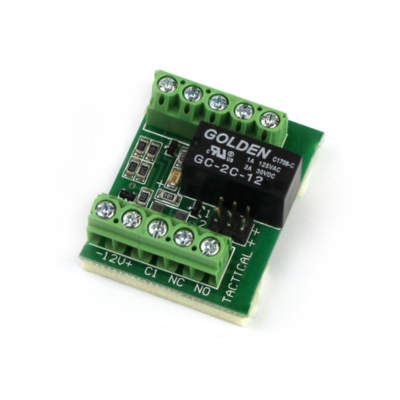

Tactical Relay Board, 12VDC or 24VDC, DPDT, Dual Input, Buffered, 1A Contacts

Name: Tactical Relay Board, 12VDC or 24VDC, DPDT, Dual Input, Buffered, 1A Contacts
Brand: CSD
SKU: TP-RLB1-DPDT-V2
Price: 34.65 AUD
Availability: InStock

Regular price $34.65

Regular price Sale price $34.65

Unit price / per

Promo Sold out

GST included.

Quantity

(0 in cart)

Link

View full details

Tactical Relay Board, 12VDC or 24VDC, DPDT, Dual Input, Buffered, 1A Contacts

Overview

The Tactical TP-RLB1-DPDT is a 12Vdc 'buffered' relay with a double pole double throw output (DPDT) and is ideal for any 12V equipment with limited sink current capability. The relay can be configured to trigger with either a negative or positive voltage and by default both poles of the relay are voltage dry contacts. A positive or negative voltage can be applied to the common of either poles by changing the onboard jumper.

Specifications

Input Voltage: 12Vdc ( 11 - 15Vdc )
Current Draw: 22mA approx
Configuration: DPDT
Contact Rating: 1A @ 30Vdc
Dimensions: 30W x 40L x 20H mm

Downloads

Datasheet
