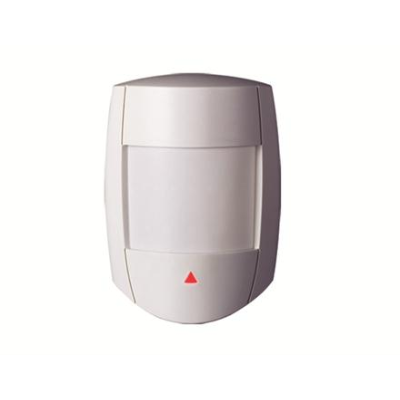

Paradox DG65 Digigard Quad Element Digital Motion Detector PDX-DG65
Paradox DG65 Digigard Quad Element Digital Motion Detector PDX-DG65
Regular price
$48.51
Regular price
Sale price
$48.51
Unit price
/
per
GST included.
Couldn't load pickup availability
Share
Overview
The Paradox DG65 indoor high-performance PIR motion detectors offer superior protection for areas up to 12m x 12m (40ft x 40ft). DG65 uses advanced 100% digital and includes a quad element sensor.
Features
- Digital Dual Opposed Detection
- Interlock Sensor Geometry
- Quad element sensor
- Auto Pulse Signal Processing
- Automatic Temperature Compensation
- Dual Edge Processing
- 12m x 12m 110deg viewing angle
- Can be used with the PDX-SB469 swivel mount bracket
Specifications
- Sensor Type: Quad element infrared
- Sensor Geometry: ISG (interlock)
- Coverage: 12m x 12m
- Installation Height: 2.1m to 2.7m
- RFI / EMI Rejection: 10V/m rejection from 10MHz to 1GHz
- Voltage Input (typical): - 11 to 16Vdc
- Current Consumption: 15mA max / 6mA min (LED disabled)
- Anti-Tamper Switch: 150mA / 28Vdc, N.C.
- Lens: 2nd generation Fresnel lens, LODIFF, segments
- Detection Speed: 0.2m/s to 3.5m/s ingress
- Operating Temperature: -20degC to 50degC, UL/ULC Tested to 0degC to 49degC
- Environmental standards somplies with EN 50131 security grade 2 / environmental class I
