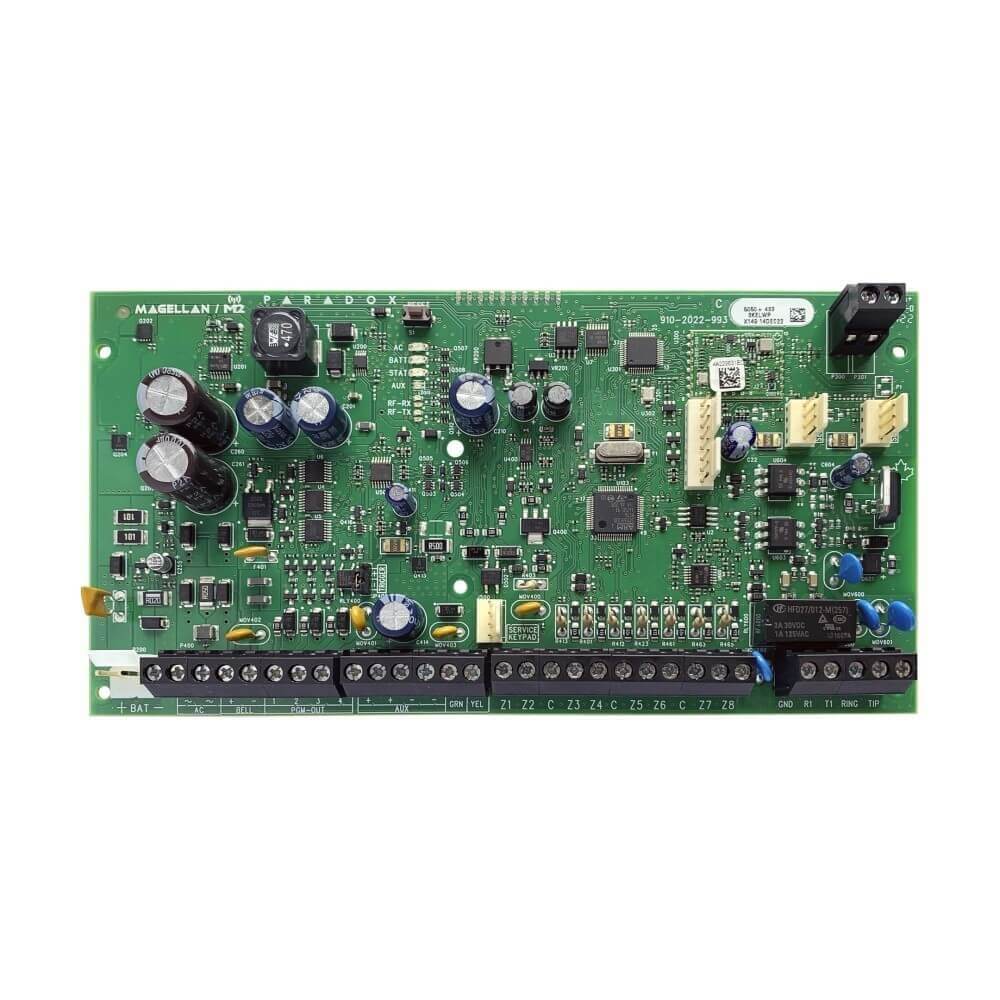

Paradox Alarm Main Board MG5050+ 16 Hardwired on board with zone doubling expandable to 32 Zones, 4 PGMs onboard including exapndable to 16 PGMs, 32 Users, 2 Areas, PCB only PDX-MG5050+
The Paradox PDX-MG5050+ is the successor to the MG5050 with a few enhancements, the main one being the increase to 8 on-board zones. The event memory has been increased to 512 events and the AUX output current has been increased to 1000mA, however, to obtain this output the CSD-T1630S-T 16VAC 3A transformer is required. If the standard 16VAC-1.5A plug pack is used, the AUX output current is limited to the standard 600mA. The MG5050+ also now includes a second serial port that is a backup IP reporting channel for the first serial port.
This Product Includes
Built-in 2-way Wireless Receiver (433 MHz or 868 MHz)
Features
Built-in transceiver (433 MHz or 868 MHz)
Loaded with CSD default settings
Supports zone doubling
1000mA AUX output
512 event history
2 Serial Ports & primary and backup IP reporting
Touch screen keypads support installer quick menu programming
