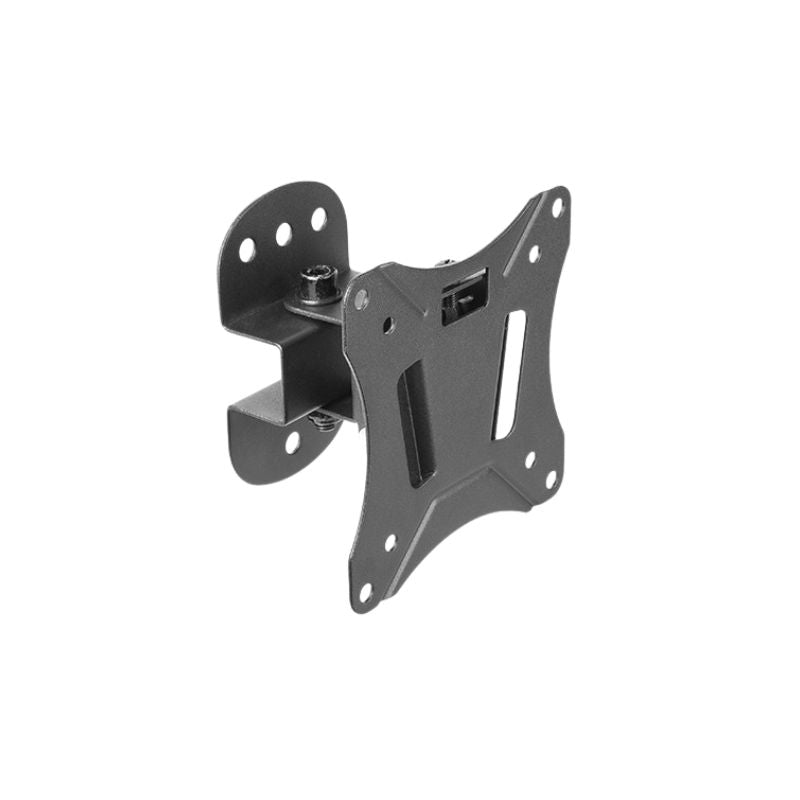

Brateck LCD Economy Pivot TV Wall Mount Bracket VESA 75 x75mm, 100 x100mm 13-27inch LCD Panel Up to 25kg

Overview

The new model KMA21-110 is an ideal solution for most 13"-27" flat panel TVs up to 25kgs/55lbs. The convenient swivel & tilt adjustments at the joint allows you to adjust the TV angle to get the optimum viewing angle: whether it's avoiding glare or positioning it towards the sofa for the perfect view, from anywhere in the room. VESA compatible with 75x75, 100x100.

Features

• Easy-Grip Knobs: for quick tilt and lock
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Easy Assembly: Installation is as easy as 1-2-3

Specifications

• Product Category: Pivot TV Wall Mount
• Rank: Standard
• Material: Steel
• Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,VESA Panel HK=1.5mm cold-rolled sheet (Wall Plate THK=0.079" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet)
• Surface Finish: Powder Coating
• Color: Fine Texture Black
• Dimensions: 115x115x76mm (4.5"x4.5"x3")
• Fit Screen Size: 13"-27"
• Fit Curved TV: No
• Mounting Hole Pattern : VESA Only
• VESA Compatible: 75x75,100x100
• Max. VESA: 100x100
• Weight Capacity: 25kg (55lbs)
• Strength Tested: 2 Times Approved
• Profile: 76mm (3")
• Tilt Range: ＋7.5°～-7.5°
• Swivel Range: +25°~-25°
• Screen Freely Tilting: No
• Installation: Solid Wall, Single Stud
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• Cable Management: No
• Anti-theft: No
• Bubble Level: No
• Accessory Kit Package: Compartment
