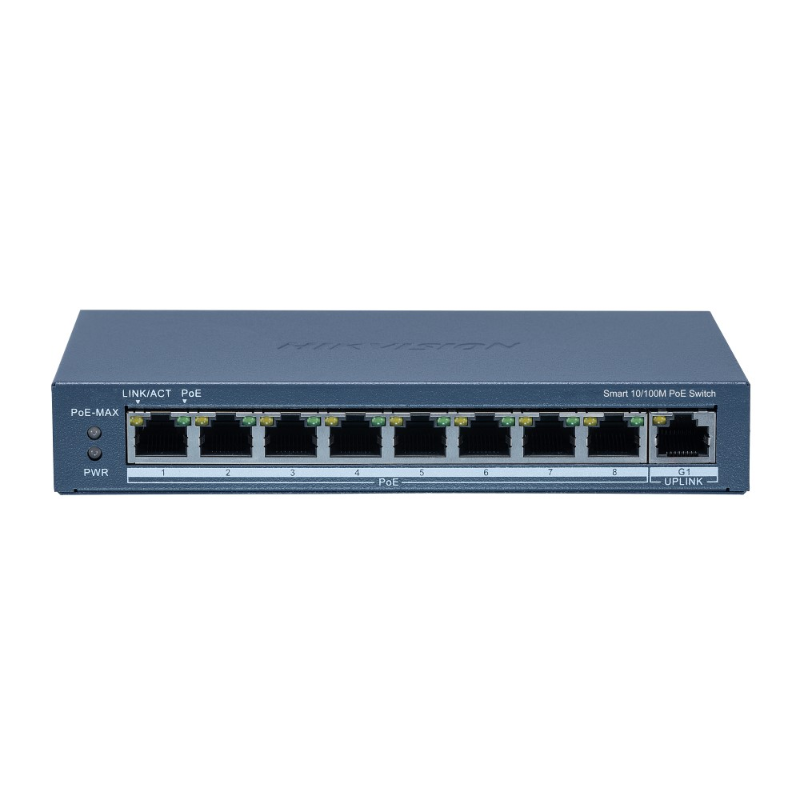

Hikvision 8 Port 10/100 PoE Switch, 1x 1Gb RJ45, 120W DS-3E1309P-EI

Overview

The HIK-3E1309P-EI is Hikvision's 8 port fast Ethernet smart POE switch. Based on wirespeed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 300m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports.

Features

• 8 x 10/100 Mbps PoE RJ45 port
• 1 x gigabit network RJ45 port
• IEEE 802.3at/af standard for PoE ports
• Network topology management, alarm push, network health monitor
• 6kV surge protection for PoE ports
• Up to 300m long-range transmission
• AF/AT cameras can reach up to 300m in extend mode


Specifications

• PoE: ports 1-8
• Max. port power: 30W
• PoE power budget: 110W
• Internal cache: 4 Mbits
• Switching capacity: 5.6 Gbps
• Power supply: 48V DC, 2.5A
• Max. power consumption: 120W
• Operating temperature: 0 degrees to 40 degrees
• Dimensions: 170mm (W) x 27.6mm (H) x 93.1mm (D)
• Net weight: 0.35kg
