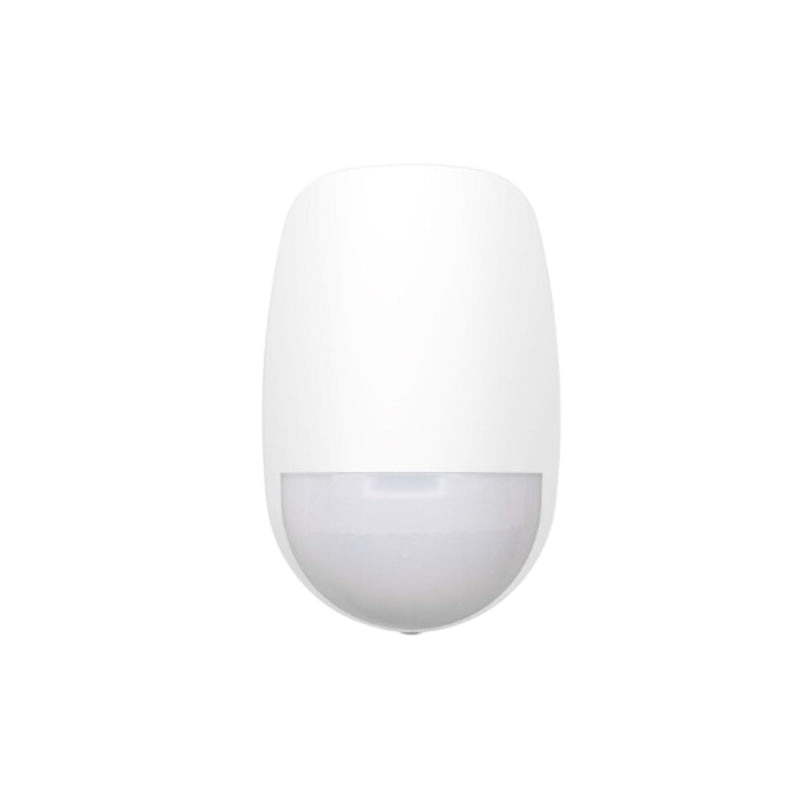

Hikvision Ax Pro Wireless Dual Tech PIR Detector DS-PDD12P-WB

Description

The Hikvision HIK-PDD12P-EG2 dual tech PIR detector has two-way wireless communication featuring motion and microwave detection, tamper protection, low battery, and RF supervision. It has a 12m range with pet immunity and is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

Features

• 3D optics including creep-zone protection for full coverage
• 24G microwave to prevent wall penetration
• Digital temperature compensation
• Easy to install design
• Fully remote configurable through the Hik-Connect app
• Wall and ceiling brackets are available
• Easily replaceable battery with PCB protection
• Frequency hopping
• Detection method: passive Infrared/microwave
• Detection range: 12m
• Detection Angle: 85.9 degrees
• Pet immunity: 30kg
• Transmission range: 1.2km (open area)
• Frequency: 433Mhz
• Encryption: AES-128
• Battery type: CR123A ’1Networking¡� 2
• Battery life: 5 years
• Size: 65.5mm x 103.0mm x 48.5mm
• Weight: 141g
