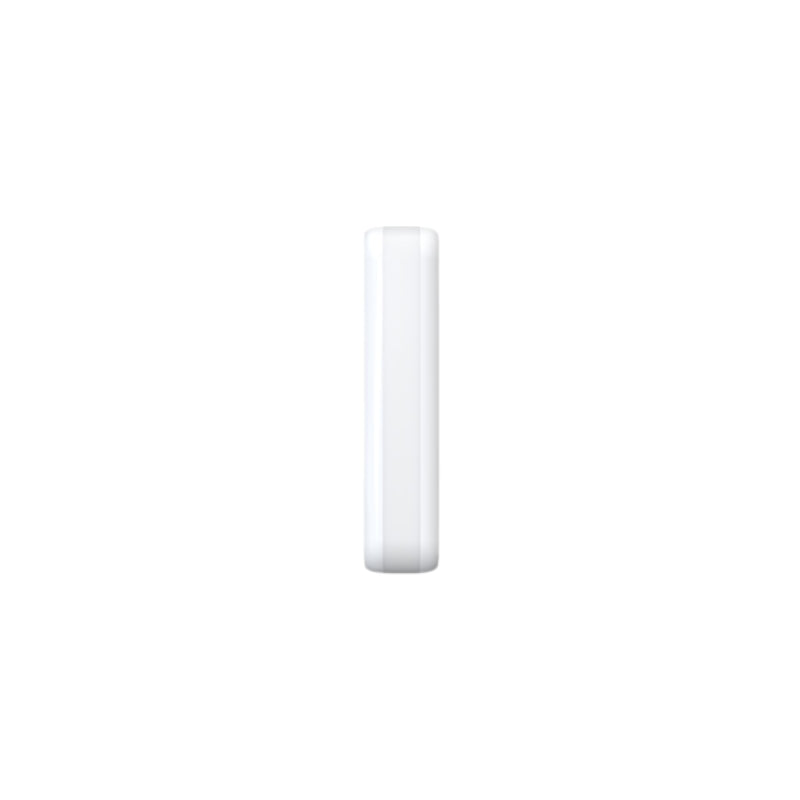

Hikvision Ax Pro Wireless Outdoor Curtain Dual Tech Detector, Anti-Mask, IP65 DS-PDC10DM-WB

Description

The Hikvision HIK-PDC10DM-EG2 outdoor curtain dual-tech detector has two-way wireless communication featuring motion detection, tamper protection, low battery, and RF supervision. It has a solid curtain coverage up to 10m long by 5m high. It is suitable for perimeter protection by setting up a detection curtain along walls or windows. It has a 12kg, wall mounted pet immunity, active IR anti-masking and is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

Features

• Active IR anti-masking
• Long range with narrow angle detection
• Easy installation design
• Fully remote configurable through the Hik-Connect app
• Easily replaceable battery with PCB protection
• Frequency hopping
• Detection method: passive Infrared, microwave
• Detection range: 10m wide, 5m high
• Detection Angle: 5 degrees
• Transmission range: 1km (open area)
• Frequency: 433Mhz
• Encryption: AES-128
• Battery type: CR123A x 2
• Battery life: 5 years
• Size: 29.2mm x 134.4mm x 39.5mm
• Weight: 120g
• Ingress protection: IP65

Downloads

Datasheet
