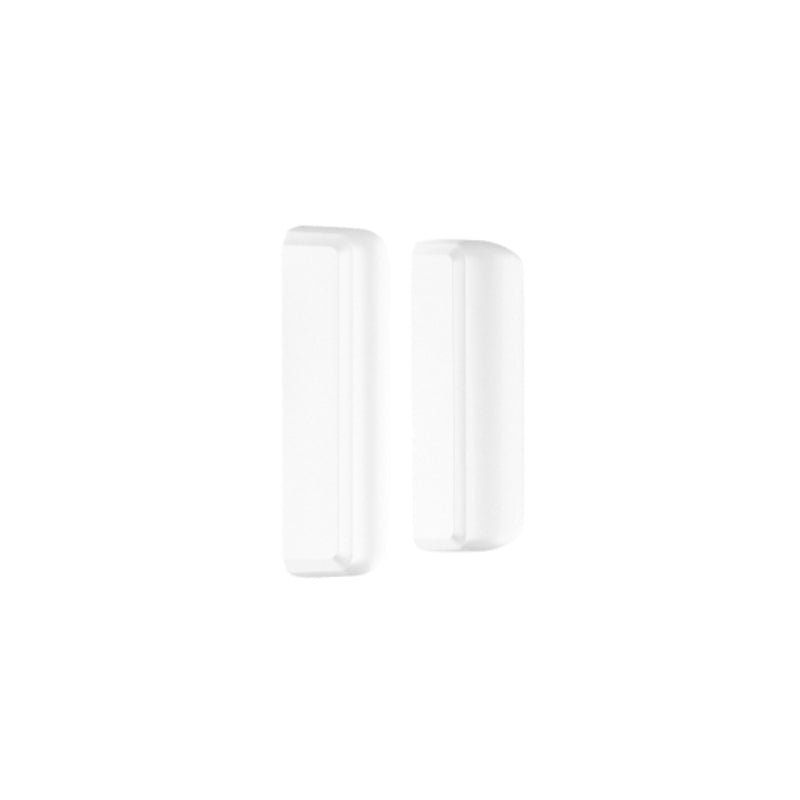

Hikvision Ax Pro Wireless Outdoor Reed Switch, Large, IP66 DS-PDMCX-E

Description

The Hikvision HIK-PDMCX-E outdoor reed switch has two-way wireless communication featuring tamper protection, low battery, and RF supervision. It has a slim and unobtrusive design, has an ingress protection rating of IP66 for outdoor use and is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

Features

• UV stable
• Slim design for unnoticeable installation
• Fully remote configurable through the Hik-Connect app
• Easy installation design
• Easily replaceable battery with PCB protection
• Frequency hopping
• Detection method: opening contact
• Detection gap: 76mm max
• Transmission range: 1km (open area)
• Frequency: 433Mhz
• Encryption: AES-128
• Battery type: CR123A x 1
• Battery life: 5 years
• Sensor: 40.5mm x 146mm x 40.9mm
• Magnet: 30.5mm x 146mm x 40.9mm
• Weight: 247g
• Ingress protection: IP66

Downloads

• Datasheet
• User Manual
