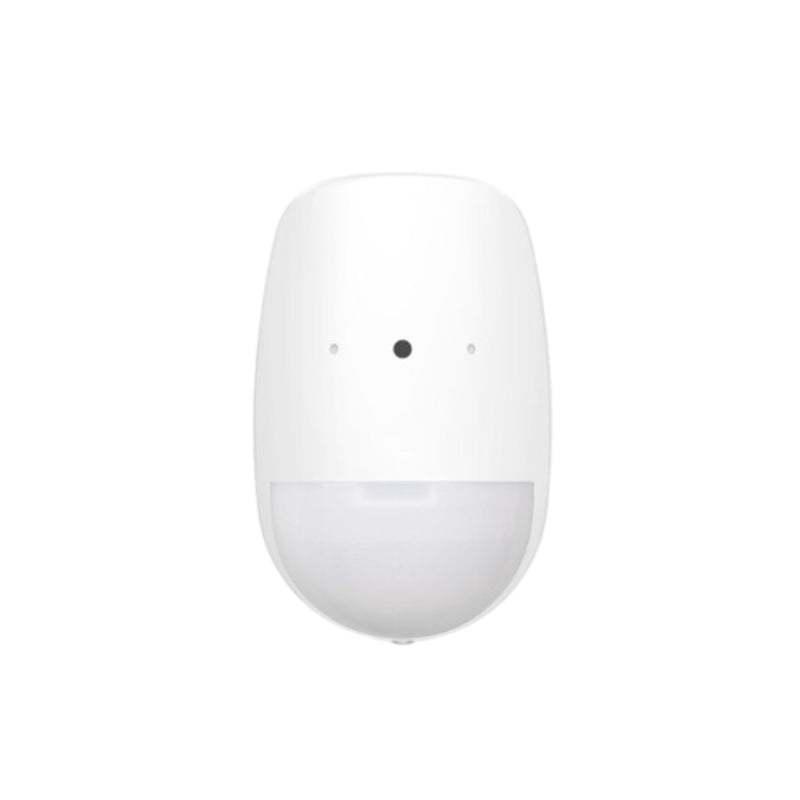

Hikvision Ax Pro Wireless PIR and Glass Break Detector DS-PDPG12P-WB

Description

The Hikvision HIK-PDPG12P-EG2 PIR with combined glass break detector has two-way wireless communication featuring motion and glass break detection, tamper protection, low battery, and RF supervision. It has a 12m PIR range with pet immunity and a glass break range of 12m and is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

Features

• Fully remote configurable through the Hik-Connect app
• Easy installation design
• Wall and ceiling brackets are available
• Easily replaceable battery with PCB protection
• Frequency hopping
• Detection method: passive infrared, acoustic sensor
• PIR detection range: 12m
• PIR detection angle: 85.9 degrees
• Glass break range: 8m
• Glass break angle: 120 degrees
• Pet immunity: 30kg
• Transmission range: 1km (open area)
• Frequency: 433Mhz
• Encryption: AES-128
• Battery type: CR123A x 2
• Battery life: 4 years
• Size: 65.5mm x 103mm x 48.5mm
• Weight: 134g

Downloads

Datasheet
