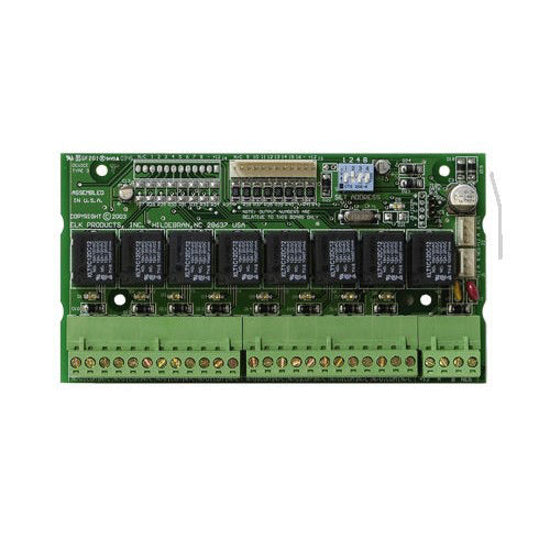

Ness M1 Output Expander M1XOVR 101-212
Ness M1 Output Expander M1XOVR 101-212
Regular price
$338.34 AUD
Regular price
Sale price
$338.34 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Share
Overview
Adds 16 outputs (8 voltage, 8 relays) to M1 Control panels. Voltages can be used to trigger low current devices (50 mA max. each). Relays are SPDT rated for 7A @ 30 VDC, 10A @ 125 VAC. Operates from 4-wire data bus. Up to 12 output expanders may be used for a total of 208 outputs. Option: Convert 8 voltage outputs to relays using M1RB Relay Board.
Features
- 8 Voltage Outputs
- 8 Single-Pole, Double-Pole Relay Outputs
- Operates on the 4-Wire Data Bus
- DIP Switch Address Settings
- One (1) 1Networking“ Twelve (12) Conductor …œFlying Lead� Wire Harness
- Voltage Outputs may be converted to Relays using M1RB Relay Boards
- Status LED with Diagnostic Display
- Mounts in Enclosure using ELK-SWG Glides, SWP or SWP3 Structured Wire Plates, or Double Sided Foam Tape
Specifications
- Voltage Outputs: 12 VDC @ 50 mA each
- Relay Outputs: SPDT rated for 7 Amps @ 28VDC, 10 Amps @ 125 VAC
- Wire Harness Length: 300mm
- Operating Power Range: 9 to 14 VDC
- Current Draw: 65 mA Nom., 330 mA Max.
- Dimensions: 152mm x 82.5mm x 19m
