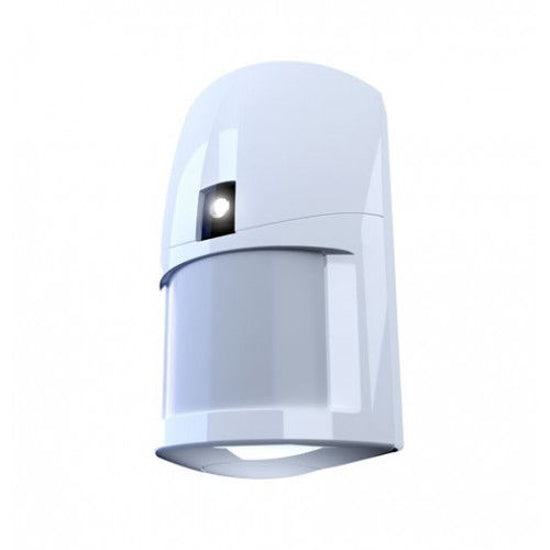

Ness Wireless 2-Way 902-928MHz Sensor PIR Lux 106-271

Overview

Ness LUX 15m Radio PIR with Two Way Radio

To simplify installation, Ness LUX Wireless PIR Motion Sensor allows the installer to remotely enable/disable Walk Test Mode from a keypad (Ness M1 only). The bright high-intensity white LED convenience/security light clearly identifies when the sensor is detecting motion.

Batteries included.

Features

• Ease of installation with keypad initiated walk test
• Industry First Security/Convenience Bright White LED with:
• Long battery life and 2 selectable sleep mode durations

Benefits

• 15m x 15m wide-angle coverage
• Look down 'Creep Zone'
• White LED motion-activated night-light
• Adjustable Pulse Count
• Adjustable Range
• High R.F. and E.S.D. immunity
• High white light immunity
• SAWR stabilised radio transmitter
• Capsule design with sealed electronics
• Front cover tamper protection
• Long-life lithium batteries supplied
• A low battery warning signal
• Hourly Supervision radio signals
• Includes wall mounting bracket
• Optional ceiling bracket available
• Two Way technology between detector and M1 Transceiver

Specifications

• DIMENSIONS: 112(h) x 72(w) x 48(d) mm
• MOUNTING HEIGHT: 2.1m 1Networking“ 2.4m
• COVERAGE: Up to 15m x 15m @ 90°
• DETECTOR ZONE: S20 dual element zones
• PULSE COUNT: Selectable 11Networking“2 or 31Networking“4
• RANGE: Selectable High/Low. 15m max./12m max
• SENSOR: Dual element pyroelectric
• ALARM INDICATION: Green LED when Acknowledgment received back from the Transceiver
• NIGHT-LIGHT: White LED with adjustable threshold, Dark/Dim Light (Controllable from the M1)
• ALARM PERIOD: 5 seconds
• OPERATING VOLTAGE: 3V DC
• BATTERY: 2 x CR123A Lithium
• QUIESCENT CURRENT: < 141Networking½¼A
• RADIO FREQUENCY: 902~928MHz (Frequency Hopping)
• TRANSMIT POWER: 1001Networking½¼W
