Ness Wireless 304MHz Sensor PIR Lux Pet 106-170
Ness Wireless 304MHz Sensor PIR Lux Pet 106-170
Couldn't load pickup availability
Share
Overview
Another Bright Idea

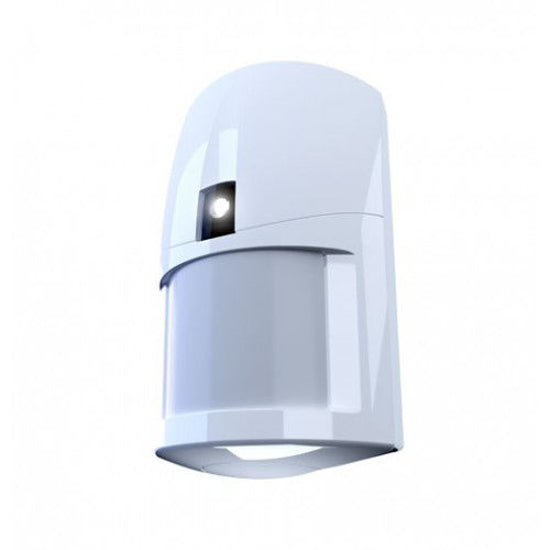

Ness LUX Radio PIR is a unique wireless motion detector with a white LED night-light especially designed for the latest generation of Ness radio control panels.
LUX shares all the features and benefits of the Ness Radio PIR range including 15m x 15m detection coverage, look-down creep zone, high RF immunity, white light immunity, adjustable range, adjustable pulse count and extremely long battery life.* Ceiling mounting is also available with the addition of a 106-169 bracket.
For safety and convenience, LUXžs night-light function provides a motion-activated cone of light to help you find your way at night. The night-light remains lit as long as it detects motion and stays on for an extra 10 seconds after motion has stopped.
Compatible with Ness one way radio receivers and Ness control panels when used with the 100-200 Ness Radio Interface.
Supplied With
- PIR
- 2 x CR123A batteries
- Manual
- Wall Mounting Bracket
* Typical battery life up to 5 years depending on motion detection activations and white light settings.
Features
15m x 15m wide angle coverage
Pet immune to a single animal up to 18kg
White LED motion activated night-light
Adjustable Pulse Count
Adjustable Range
High R.F. and E.S.D. immunity
High white light immunity
SAWR stabilised radio transmitter
Capsule design with sealed electronics
Long life Lithium batteries supplied
Low battery warning signal
Hourly Supervision radio signals
Includes wall mounting bracket
Optional ceiling bracket available
Specifications
- DIMENSIONS: 112(h) x 72(w) x 48(d) mm
- MOUNTING HEIGHT: 2.1m 1Networking“ 2.4m
- COVERAGE: Up to 15m x 15m @ 90°
- DETECTOR ZONE: S20 dual element zones
- PULSE COUNT: Selectable 11Networking“2 or 31Networking“4
- RANGE: Selectable High/Low. 15m max./12m max
- SENSOR: Dual element pyroelectric
- ALARM INDICATION: Blue alarm LED
- NIGHT-LIGHT: White LED with adjustable threshold, Dark/Dim Light
- ALARM PERIOD: 5 seconds
- OPERATING VOLTAGE: 3V DC
- BATTERY: 2 x CR123A Lithium
- QUIESCENT CURRENT: < 141Networking½¼A
- RADIO FREQUENCY: 304MHz
- TRANSMIT POWER: 1001Networking½¼W
