Brisbane Installed System – HiLook Hybrid 6-Detector Alarm Kit
Brisbane Installed System – HiLook Hybrid 6-Detector Alarm Kit
Ready to Proceed? Add this package to your quote and CustomLink will confirm the installation details before finalising the order. For more information or a callback, submit the enquiry form below.
The price shown is based on the standard installation scope. CustomLink will first confirm whether your property falls within this scope. If it does, CustomLink will arrange a site inspection before the final order is confirmed. If it does not, we will gather additional information, provide an updated estimate including any expected variations, and arrange a site inspection once the estimate is agreed.
Professional Installation Included
CustomLink completes the agreed physical installation, including standard cabling, fixings and installation materials within the package scope. The system is configured, programmed, tested and commissioned as part of the installation. Any work outside the standard installation assumptions is quoted separately before proceeding.
User Training & System Handover
CustomLink provides practical user training at completion, including how to operate the main system functions, use the supported mobile app, understand alerts and notifications, and manage normal day-to-day use. The system is then handed over after final testing and commissioning, together with the applicable master or administrator login details.
On-Site Parts & Labour Warranty Included
No payment is required for covered parts or labour during the applicable warranty period. The applicable warranty periods are shown under What’s Included or in your quotation.

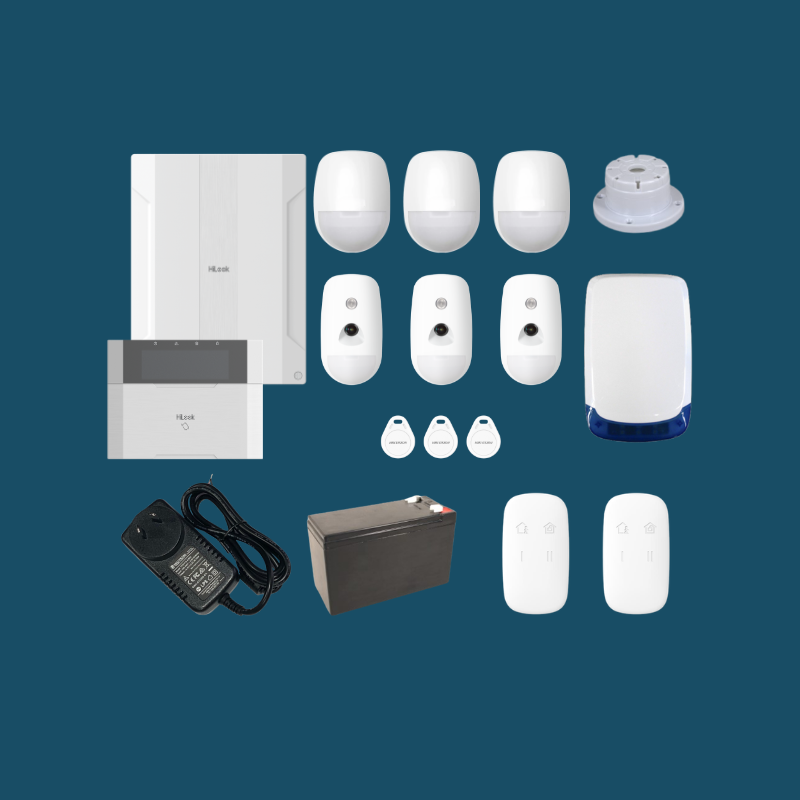

What's Included
- 1 x Hilook Alarm Control Panel HA-ALARM-P48
- 1 x Power Supply for Hikvision Hybrid Alarm, 14.3V DC, 2.5A, Plug Pack, TP-TP14.3-2.5DC
- 1 x Battery 12V 7.0Ah Sealed Lead Acid
- Your choice of
1 x Slimline External Siren Kit Combo - Rectangle and 1 x Top hat screamer, 12V DC
or
1 x Full-Cover External Siren Kit (Strobe, Combo Siren & Horn Speaker, Cover, Tamper Switch ) & Top Hat Screamer - 3 x HiLook Alarm PIR, 10KG Pet Immunity HA-ALARM-PIR1
- 3 x Hikvision Hardwired PIRCAM to suit Hardwired Alarm Controller, Pet Immune DS-PDPC12P-EG2
- 2 x HiLook Alarm Wireless Key Fob HA-ALARM-KF-WB
- 1 x HiLook Alarm Hardwired LCD Keypad HA-ALARM-KP-WB
Included Services
✓ Professional on-site installation, including cables and fixings
✓ System configuration and programming
✓ Mobile app setup where supported
✓ Software setup on PC where specified
✓ System testing and commissioning
✓ Full user training and handover on the day of completion
Included Support & Warranty
✓ Free Standard Remote Support for the life of the product on CustomLink-supplied systems
✓ 3-Year On-Site Parts Warranty
✓ 1-Year Standard On-Site Labour Warranty
✓ 1-Year Extended Labour Warranty Included – Total 2 Years
Important Setup Information
Mobile app setup and PC software installation are included only where specified.
These setup tasks must be completed on the installation site before completion of the project. Additional charges may apply if CustomLink is required to attend another site or return after project completion, unless otherwise specified in writing.
Product Overview
A professionally installed HiLook hybrid alarm package, typically suited to homes, small offices, retail shops and other smaller premises requiring a reliable hardwired alarm system with mobile control and room for future expansion.
The HiLook HA-ALARM-P48 provides 8 on-board wired zone inputs. Where suitable, the inputs can be configured using dual-zone / zone-doubling wiring, allowing the 8 physical zone inputs to support up to 16 separately identified hardwired detection zones without adding a zone expander. The overall platform supports up to 48 alarm inputs, 16 areas and up to 48 alarm outputs with compatible expansion. Hikvision documents Dual Zone as a supported AX Hybrid Pro wiring mode, with two detectors represented from one physical zone input.
This package starts with 4 wired PIR detectors, a hardwired LCD keypad and 2 wireless keyfobs. The system can be expanded with additional compatible detectors, keypads, keyfobs, tags, alarm outputs, communication options and video-verification devices as requirements change. The HiLook platform supports up to 4 wired keypads, 48 tags, 48 keyfobs and 4 wired PIRCAM devices.
Users can arm and disarm the system from the keypad and compatible keyfobs, with remote control available through Hik-Connect where configured. The platform supports Ethernet/IP communication as standard, with optional PSTN, GPRS and 4G communication modules for additional communication paths where required.
The HA-ALARM-P48 also supports compatible IP-camera and PIRCAM video verification, allowing selected alarm events to be associated with video or images where the required equipment and configuration are included.
CustomLink configures, programs, tests and commissions the alarm around the agreed property layout and requirements, rather than supplying the panel only in its factory-default configuration.
Product Overview
A professionally installed HiLook hybrid alarm package for homes, small offices, retail shops and other smaller premises requiring reliable hardwired intrusion detection, mobile control and visual alarm verification.
This package includes 6 detectors, with compatible PIRCam detection for selected areas. A PIRCam combines motion detection with an integrated camera so you can receive visual confirmation of an alarm event.
PIRCam Alarm Verification
When a PIRCam detects movement while the system is armed, Hik-Connect can send an alarm notification with captured images or a short video clip, helping you see what caused the alarm.
PIRCam Privacy
The PIRCam is not a normal CCTV camera. It does not provide continuous live viewing or 24/7 recording.
The camera is used for alarm-event verification, capturing images or short clips when a relevant event occurs. Access is limited to authorised users.
System Control & Expansion
Control the alarm using the hardwired keypad, compatible keyfobs or Hik-Connect where configured.
The system can be expanded with additional compatible detectors, PIRCam detectors, keypads, keyfobs, tags and communication modules as requirements change.
CustomLink professionally installs, configures, programs, tests and commissions the system ready for handover.
Expansion & Platform Capabilities
The following capabilities apply to HiLook systems based on the HA-ALARM-P48 hybrid alarm platform. Some functions require compatible additional equipment, communication modules, cameras, expansion hardware or configuration and may not be included in every package.
-
8 On-Board Wired Zones — Up to 16 with Zone Doubling
The control panel includes 8 physical wired zone inputs. Where suitable, zone doubling can be configured so the 8 on-board inputs support up to 16 separately identified hardwired detection zones before additional zone-expansion hardware is required. -
Up to 48 Alarm Inputs
The system can be expanded to support up to 48 alarm inputs, allowing additional PIRs, door contacts and other compatible detection devices to be added as requirements grow. -
Up to 16 Areas
Supports up to 16 security areas, allowing different parts of a property to be armed, disarmed and managed separately where required. -
Up to 48 Alarm Outputs
Supports up to 48 outputs with compatible expansion. Outputs can be used for sirens, indicators, relays and other programmed alarm responses. -
Hik-Connect Mobile Control
Where configured, authorised users can remotely arm and disarm supported areas, receive alarm notifications and access compatible system functions through the Hik-Connect app. -
Built-In IP Communication
Ethernet/IP communication is built into the control panel for supported network, Hik-Connect, remote-management and alarm-communication functions. -
Optional Cellular & PSTN Communication
Compatible communication modules can provide additional cellular or PSTN communication paths where required by the system design. -
Up to 4 Wired Keypads
Additional compatible wired keypads can be added to provide system control from multiple locations. -
Up to 48 Keyfobs & 48 Tags
Compatible wireless keyfobs and proximity tags can provide additional methods for authorised users to operate the system. -
Up to 4 Wired PIRCAMs
The platform supports up to 4 compatible wired PIRCAM detectors, combining movement detection with visual alarm verification in selected areas. -
PIRCam Visual Alarm Verification
When a compatible PIRCam triggers an alarm, the system can capture associated images or video for visual verification. Supported alarm events can be delivered through Hik-Connect to help authorised users determine what caused the alarm. -
2-Channel IP Camera Video Verification
The platform supports up to 2 compatible IP-camera channels for alarm video verification, allowing selected alarm events to be associated with supported CCTV video. -
Live CCTV & Recorded Playback Where Compatible CCTV Is Connected
Where compatible HiLook or Hikvision CCTV cameras, DVRs or NVRs are added to Hik-Connect, authorised users can view supported cameras live and access recorded playback. This is separate from PIRCam alarm-event verification. -
Speed-X Bus Expansion
The platform uses Speed-X bus technology for compatible wired devices and expansion, including supported transmission of PIRCam visual-verification data. -
Alarm Receiving Centre Compatibility
The platform supports compatible alarm receiving centre reporting using supported communication protocols where professional monitoring is required and appropriately configured. -
Expandable Hybrid System
Additional compatible detectors, keypads, keyfobs, tags, alarm outputs, communication modules and visual-verification devices can be added as the property's requirements change.
