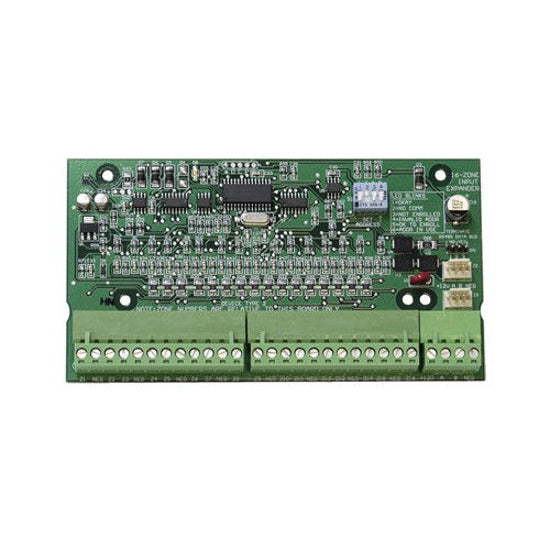

Ness M1 Input Expander M1-XIN 101-210
Ness M1 Input Expander M1-XIN 101-210
Regular price
$259.47 AUD
Regular price
Sale price
$259.47 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Share
Overview
The M1XIN adds 16 hardwired zones (EOL resistor supervised) to the M1, M1 Gold and EZ-24 Control Boards. It operates on the 4-wire data bus and features flash memory which allows field updating of its operating firmware. Up to 12 zone M1XIN boards may be connected, increasing total zones (inputs) to 208.
Features
- 16 EOL Resistor Supervised Hardwire Zones
- Operates on the 4-Wire Data Bus
- DIP Switch Address Settings
- Flash Memory for Firmware Updating
- Plug-In Terminal Strips
- Status and Diagnostic LED
- On-Board EOL Bus Termination Jumper
- Vertical Mounting using ELK-SWG Glides (included)
Specifications
- Inputs: Plug-In Terminals with Elevator Style Wire Clamps and Screws
- Operating Power Range: 9 to 14 VDC
- Current Draw: 65 mA
- Size: 152.4mm x 82.5mm x 190.5 H
