Ness M1 Keypad LCD M1KP2 101-256
Ness M1 Keypad LCD M1KP2 101-256
Regular price
$231.00 AUD
Regular price
Sale price
$231.00 AUD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Share
Overview
The finest way to Control your M1 Panel

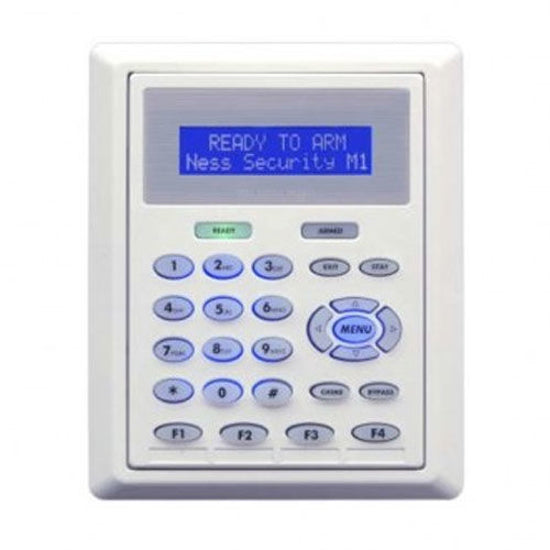

The Ness M1KP2 is a low profile, addressable LCD Keypad for the M1 Cross Platform Controls.
The M1KP2 is compatible with "external" proximity readers which utilises standard 26 Bit Wiegand format, allowing cards or fobs to be used for Arming, Disarming or door access control.
The user-friendly menu easily guides you through the full list of automation tasks, programming, systems diagnostics, and much more.
With the addition of an M1 Flush Mount Kit, the KP2 can be mounted discreetly and stylishly into any Gyprock wall.
Compatible With
- Ness M1 Gold Panel 14" or 28"
- Ness EZ-24 Panel
Supplied With
- Keypad
- Wire loom
- Manual
Features
- Blue/White Backlighted Hi-Contrast LCD Display
- Four Programmable Function Keys
- Unique Menu Navigation/Direction Keys
- Operates on 4-Wires (M1G/M1EZ8 "RS485" Data Bus)
- Built-in Piezo Sounder with Adjustable pitch
- Accepts "External" 26 Bit Wiegand Prox Reader (Optional)
- Input for 1 Supervised Zone
- One Programmable "Switched Positive" Voltage Output
- Exit, Stay, Chime, and Bypass Keys
- Optional recess "Flush" mount kit available
Specifications
- DIMENSIONS(W - H - D): 118 x 140 x 24 mm
- CONNECTION: 6 Pin Plug-in "Flying Lead" Connector (Included)
- CURRENT DRAW: ~30 mA Idle (low backlight level, sounder silent), ~85 mA Fully Active (max. backlight)
- OPERATION VOLTAGE: 13.8VDC supplied by the control panel
