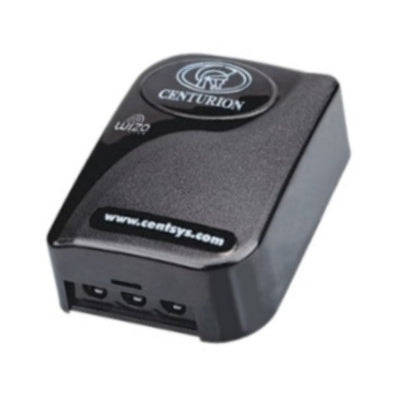

Wizo Link Wireless Transceiver (WIZO)

Overview

Go wireless with Wizo! Using radio technology to create a mesh network, WiZo-Link allows a simpler way of creating a fully connected network of home devices or equipment that can be controlled in one place through a mobile phone. This network can be effortlessly scaled and expanded according to your requirements.

Each WiZo-Link becomes a …œnode� in the network and talks to other nodes to create a sort of intelligent and responsive super-highway carrying signals over great distances. If the environment changes, the network simply finds a suitable detour to ensure that you remain connected.

Features

• Eliminate Wires. There is no need to break walls, no need to deface your property and spend large amounts of money on unreliable and inflexible wired connections.
• Extendable Signal Range. With WiZo-Link, the range is no longer an issue. Every device (WiZo) acts as a signal repeater.
• Centralized Control with GSM Wireless Solution. Add a CENTURION G-ULTRA GSM unit to monitor and control all your WiZo-Linked appliances via your mobile phone.
• Redundancy. The reliability of the network is guaranteed. If one of the devices stops working, the signal will simply be picked up by the nearest working device.
• Unlimited List of Applications. Wirelessly control and activate lights, electric gates, geysers, pool pumps, irrigation systems, air conditioners and a plethora of other electrical appliances.
• WiZo-Link networks can be grown to almost any size.
• Two-way communication is possible.

Specifications

• Supply voltage range: 11.5V 1Networking“ 24V DC
• 1 Output / Device
• Number of outputs linkable by single input 10
• Number of inputs linkable to single output 10
• Weight: 65g
• Dimensions (W x D  x H): 78 x 58 x 31mm
• The network can be grown to virtually any size
• Range: 4km (Line of Sight), 200m (Inside Buildings)
