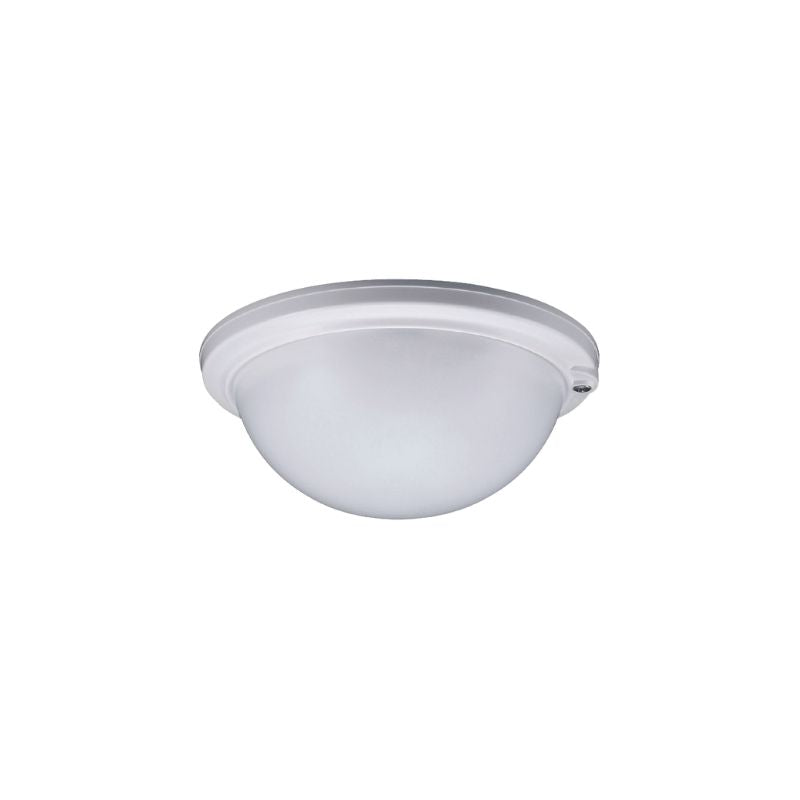

Takex Ceiling Mount Wide Angle 90deg Mirror Optic Pet Immune Sensor, 12m, 18kg TAK-PA6412PI

Features

• 18kg (39.7lb) pet immunity
• Ceiling mount design
• Multiple zone technology
• Mirror optics
• Detachable base unit with snap-in/out sensor design
• Insect protection
• Photo MOSFET relay for silent operation
• Pulse count
• LED disable switch
• Low voltage alarm

Specifications

• Detection system passive infrared (Twin)
• Alarm output: Dry contact (Semi-conductor)
• Relay output: N/C or N/O selectable
• Reset time: approx. 2sec.
• 24V (AC/DC) 0.25A Max
• Supply voltage: 10 to 18VDC (non-polarity)
• Current consumption: 25mA
• Ambient temperature: -15 to +55 degrees Celsius
• Mounting position: Indoor ceiling
• External dimensions: 147 x 60mm
• Weight: 160g

Downloads

• Datasheet
• User Manual
