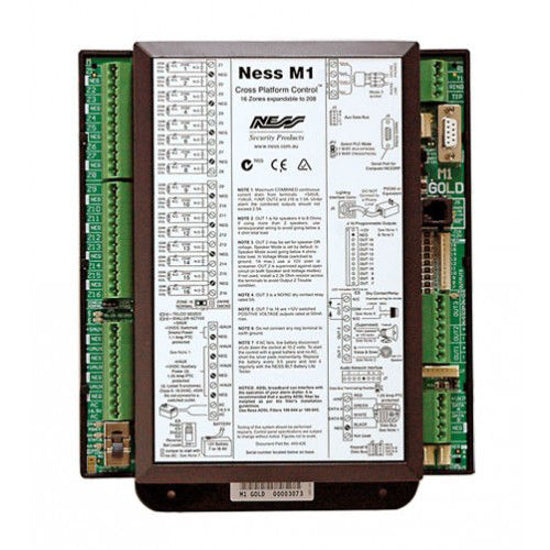

Ness M1 Gold - Main Control Module
Ness M1 Gold - Main Control Module
Couldn't load pickup availability
Share
Description
This is a replacement board only, requires housing, power supply and peripherals (not included).
Compatible Mobile Apps
Technologies you could previously only imagine
The Ness M1 Gold offers unequalled value to System integrators, installers, and end-users.
Unlike panels that may be strong in automation but weak in security (or vice versa), the M1 Gold boasts a rock-solid security foundation with the most imaginative and powerful automation functionality available.
Integrators and Installers will value the flash memory firmware, RS-232 serial port, ethernet connectivity option, fast PC programming, and ease of installation.
End users will welcome the quality and futuristic capabilities of the versatile keypad, voice telephone dialler and the built-in telephone remote. The 500+ word vocabulary pleasantly announces system status, configurable in any sequence to alleviate user intimidation.
M1 offers the flexibility to integrate industry-standard systems and components for easy upgrades and system expansion. In addition to the powerful digital dialler, the M1 has a built-in voice dialler, which can call any phone, on or off-site, including a mobile phone. Remote telephone control capability allows you to perform tasks; such as, change the temperature setting, control the water heater, lower the garage door, set lighting scenes, arm/disarm the system, control sprinklers, and more by simply picking up the phone œ any phone.
MAJOR FUNCTIONS WITH ACCESSORIES
M1 NAVIGATOR TOUCH SCREEN KEYPAD
M1 Navigator features a touch-sensitive 3.5� LCD colour display with bright, easy to use graphic icons and softkeys which makes it simple to operate Security Zones, control Outputs, Lights, Automation Tasks and easily change custom settings.
Connection to an M1 or EZ8 panel is via the M1 RS485 bus, making it simple for new or retrofit installations.
M1 Navigator is a pleasure to use and makes an attractive addition to any M1 system.
KEYPADS
Ness M1 keypads provide choice for both the installer and the user.
The keypads have highly functional backlit keys with adjustable intensity and time/date display.
Up to 16 keypads can be installed on any M1 system. The Ness KP2 keypad even has a recessing kit option for that extra flush look.
LAPTOP
Get total control of your entire system with easy to use installer„s and user„s management software.
Direct connect via a serial port for fast installer access or connect via M1 Ethernet Interface and LAN for powerful user functions.
INTERNET INTERFACE
The Ness Ethernet Interface allows you to view a secure 1Networking“virtual keypad� of your M1 system via an internet connection.
Log-in using an internet-enabled computer and view, change, turn outputs on/off, arm/disarm from anywhere in the world. Also supports full programming of the system via Ethernet as well as email on events.
IR REMOTE CONTROL
IR integration to control any device that supports IR remote control, (air con, CD, DVD, TV etc).
ACCESS CONTROL
The M1 access control option allows arming/disarming and door access via optional prox readers added to M1 keypads or Ness proximity readers interfaced with the system.
RADIO KEYS
Optional radio interfaces provide the convenience of wireless remote control arming and disarming and panic functions as well as wireless motion detectors and other detection devices.
2 WAY VOICE
Listen in and speak via your M1 control from any telephone using the optional 2-way voice feature. For alarm verification, talkback, industrial monitoring and general domestic use.
TELEPHONE CONTROL
Dial-in with your mobile phone for easy arming and disarming, operate lights, outputs all with voice feedback.
Features
Powerful Automation
- HVAC: heating/ cooling RCS, Aprilaire, etc
- Whole House Automation: Home Theatre / DVD / Audio Crestron, AMX, Control 4 etc
- Lighting Control: 2 way C-Bus Interface, Dynalite, iControl, X10, UPB, etc
The Ness-M1, together with the Ness-RP Automation Programming software offers powerful, easy to set up and manage, lifestyle enhancement features. The automation programming allows mixing and matching of lighting components, outputs (relays or voltage), thermostats, temperature sensors, and all the security inputs and features to integrate functions that add value and appeal to the owner/user/manager.
Whenever/And/Then rules can be set to turn on and off in response to a time of day, a certain sensor, or the arm/ disarm status of the system. Outputs can be set to control door strikes, irrigation sprinklers, circulating pumps, valves, outdoor signage, refrigeration etc. Automation tasks can also be driven by the built-in astronomic clock which calculates sunset/sunrise depending on your geographic location and also takes daylight savings into account.
You dream it, M1 does it!
Security System
- Input Expansion
- Output Expansion : Sprinklers / Front Gate / Siren / Garage Door / Strobe Lights / Machinery / Electric Locks / Industrial Controls
- 16 zones onboard: expandable to 208 zones
M1 can be expanded up to 208 inputs using up to 12 add-on Input Expanders. Each input can be programmed to be Normally Open, Normally Closed, End Of Line, High Security 4 State End Of Line or Analogue to suit a huge variety of detection and sensing devices such as motion sensors, mechanical contacts, fluid level sensors, gas sensors, smoke detectors, temperature sensors and many more.
Up to 12 Input Expanders, each with 16 zones can be added anywhere along the 4 wire data bus. The high-end security features include multiple user codes, multiple area operation and multiple arming levels such as Away, Stay, Stay Instant, Night, Night Instant, Holiday mode and other combinations. The onboard telephone dialler is capable of reporting alarm events to a central monitoring station and/or several private telephone numbers such as mobile phones.
Total Building integration
- Security
- Access Control
- Building Management: 10,000+ Access Control Doors
- 50,000+ Users
- 32 Areas
- 1000+ Inputs
Up to four M1 systems can be networked and interface with the Ness IDTeck suite of powerful access control systems. The range includes everything from a standalone single-door controller to networked systems up to 10,000+ doors. There are many integrated security and access control features available such as denying access to a user if an M1 security area is armed and the user does not have security system disarm rights, regardless of the user„s access control time schedule and access level. Once the area is disarmed, the user with the right access level will now be granted access. The powerful and user-friendly Ness Starwatch application software suites provide total solutions for access control and security management tool, time attendance, site management, lift control and centralised user management. The standard Ness Starwatch software includes user management of both access control credentials as well as M1 security codes. It includes alarm graphics for quick identification of alarm points, access doors and security areas control both for alarm event identification as well as user control of these points. It also includes a comprehensive report generation of access control and security management events from IDTeck controllers and Ness M1 systems.
Specifications
- Large zone capacity, expandable to 208 zones.
- Two Way Listen-in interface.
- Flash Memory - Allows field updates to firmware.
- RS-232 serial port to interface to Computers and other devices (expandable to 8).
- Time/Date stamped 512 event history log.
- Menu-driven keypad programming - no manual required!
- Voice announcement of alarms, zone descriptions, status, etc. *
- 13 On-Board Outputs: 1 voice driver/siren, 1 siren driver/voltage, 1 Relay, and 10 voltage outputs - expandable to 208 outputs.
- Includes Fire alarm verification routine.
- Can be partitioned into 8 separate areas and accounts.
- 199 User Codes (4 or 6 digits) with assignable authorities.
- Arm levels: Away, Stay, Stay Instant, Nite, Nite Instant, Vacation.
- Plug-in terminals make service and pre-wire simple.*
- Hardware 1Networking“watchdog� and nonvolatile EEPROM memory.
- Supervised phone line.
- Supervised alarm output.
- Supervised power supply overcurrent.
* Some features are not available on all models.
COMMUNICATIONS
- True V.22 bis Modem for fast reliable upload/download.
- Optional Ethernet port for user operation, programming.
- Built-in Telephone Remote makes any phone a keypad.*
- Integrated Voice Dialler uses vocabulary or custom word/phrases.*
- Digital Dialler: SIA, Contact ID, 4 + 2, and Pager.*
- Installer telephone (buttset) test feature.
- Ness-RP PC programming software includes conflict resolution to easily highlight differences between control and PC. Connection methods include Dial-up (including automatic answering machine bypass), ethernet, or local from RS-232 port or house phone jack.
* Some features are not available on all models.
AUTOMATION & INTEGRATION
- Create lifestyle enhancing comfort, convenience, and security.
- Logic programming with Ness„ powerful 1Networking“Whenever/ And/Then� RULES Programming allows almost any imaginable operation. No need to chain rules together. Any
- single 1Networking“Whenever� event can have one or more ANDs and THENs (conditions and commands).
- Rules utilize easy to understand text-based references.
- Control lighting using RS-232 serial or 2-way Power Line Control (PLC) ports for On, Off, Dim, All On, All Off commands.
- Sunset/Sunrise calculation and activation / onboard astronomic clock.
- Transmit and receive custom serial ASCII strings.
- Read Temperature Sensors and communicate with Thermostats.
- Turn on Tasks, Lights, Outputs via Keypad or Telephone Remote or via the Ethernet Interface and 1Networking“Virtual Keypad�.
- IR integration to control any device that supports IR remote control, (air con, CD, DVD, TV etc).
- Networks with a broad range of other systems.
POWER SUPPLY
- Heavy Duty 2.5 Amp power supply w/ 1.5 Amp continuous
- Master power switch and Low battery disconnect.
- PTC (fuseless) resettable overload protection.
- Multiple auxiliary power terminals.
