Brisbane Installed System – Ness M1 Security & Automation Kit 2.1

Name: Brisbane Installed System – Ness M1 Security & Automation Kit 2.1
Brand: Ness
SKU: NessM1-Kit2.1-I
Price: 16490.00 AUD
Availability: InStock

Regular price $16,490.00

Regular price ~~$18,090.00~~ Sale price $16,490.00

Unit price / per

Promo Sold out

GST included.

Quantity

(0 in cart)

Link

View full details

Brisbane Installed System – Ness M1 Security & Automation Kit 2.1

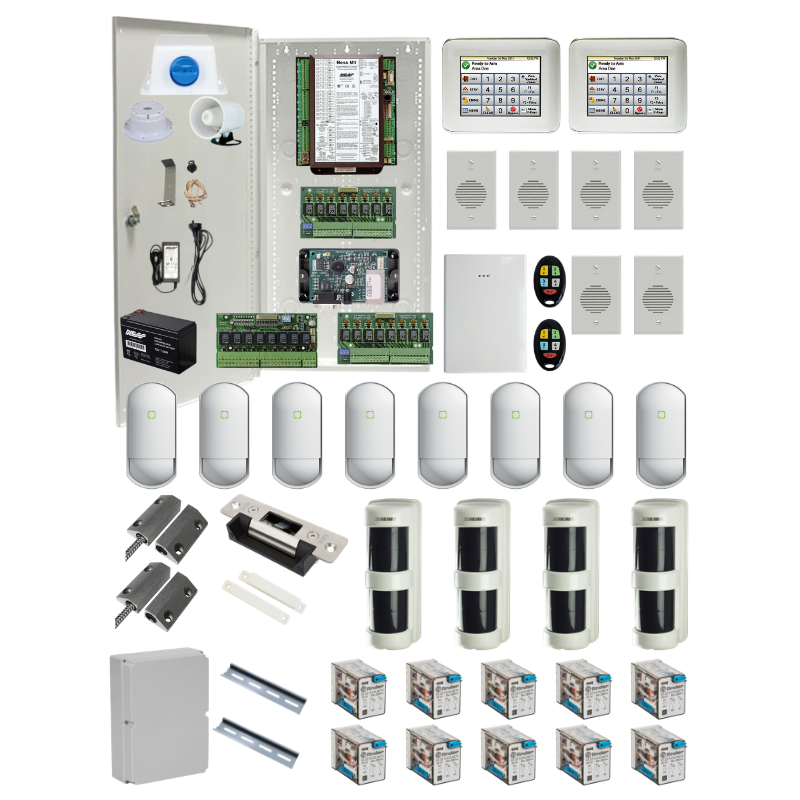

Included Equipment

Professionally supplied, installed, configured, tested and commissioned by CustomLink.

Main Control System

1 x Ness M1 Housing 28 Inch Tamper Kit 101-267
1 x Ness M1 Gold - Main Control Module
1 x Ness M1 Power Pack (includes 7AH Battery) 101-208

Warning Devices

1 x Full-Cover External Siren Kit (Strobe, Combo Siren & Horn Speaker, Cover, Tamper Switch ) & Top Hat Screamer

User Control

2 x Ness M1 Keypad Touch Screen 101-502
1 x Ness M1 Receiver 2-Way 902-928MHz M1XRFTWM 101-292
3 x Ness Remote M1 2-Way 915-927MHz 5-Button 106-110
1 x Ness M1 Ethernet Module M1XEP 101-215 (required for mobile app)

Voice Announcement

6 x Ness M1 Series Flush Mount Speaker 101-227

Detection Devices

8 x Optex FlipX Standard 12m Indoor PIR Sensor with Rotatable Lens, comes with wall/ceiling mounting bracket, FLX-S-ST
4 x Takex Outdoor Dual zone Outdoor PIR (PET tolerant) TAK-MS12TE
2 x Roller Shutter Door Reed Switch Mini Heavy Duty Metal, Surface Mount, 30mm Gap for the two garage doors
1 x Surface Mount Big Gap Reed Switch, White for the vehicle gate
1 x Reed switch built into the electric strike below

Gate & Door Control

1 x LOX or FSH ES10M Electric Strike, ANSI, Weather Resistant, Monitored, 12 or 24VDC for the pedestrian gate

Automation Hardware

1 x Ness M1 Output Expander M1XOVR 101-212
2 x Ness M1 Relay Board, 8 Form C 101-213
1 x Integriti Enclosure Small Powered with 2 Amp Power Supply
1 x Backup Battery 12V 7.0Ah Sealed Lead Acid

240V Integration

1 x B&R Plastic Enclosure (to house relays below) including DIN rails to fit inside B&R Enclosure
10 x Finder Relay Base
10 x Finder Relay 12VDC Coil, 250VAC10A 2-Pole Contacts.
- The 10 relays allow the Security & Automation system to control up to 10 suitable existing 240V lights, power points or other electrical devices.
- A relay works like an additional light switch, except it is operated electronically by the Security & Automation system.
- Included: CustomLink installs the relays, connects the low-voltage control wiring and programs the system to operate them.
- Not Included: All 240V electrical wiring and connections to the relays must be completed by a licensed electrician. This work and its cost are not included in the package price.
- You can use your own licensed electrician, or CustomLink can help arrange contact with an electrician we know.

Thank You — Your Checklist Has Been Submitted

Thank you for completing the Security & Automation Detection Function Checklist.

We have sent a copy of your selections to your email address for your records.

If you requested contact, we will reach out to discuss your requirements.

You can always contact us for further assistance.

SECURITY & AUTOMATION — DETECTION FUNCTION CHECKLIST

Start With What You Need Now. Expand for What's Possible Later.

Before deciding how your Security & Automation system should respond, it's important to understand what it can detect or monitor.

Detection can include indoor and outdoor movement, restricted areas, intelligent cameras, abnormal heat, water conditions and events from other connected equipment.

Review the functions below and select what you may need now, what you might want later or what you don't need.

You don't have to make every decision today.

After submitting this checklist, you will receive a copy of your selections by email for your records. You can review it with family members, business partners or your installer before deciding what to do next.

There is no obligation to purchase or request a quotation.

YOUR CONTACT DETAILS

Please provide your contact details so we can email you a copy of your completed checklist or contact you if you request assistance.

**A01 — Indoor Movement Detection** Detect movement in selected rooms, hallways, garages and other indoor areas.

Need Now Need Later Not Needed

**A02 — Indoor Restricted Area Detection** Detect movement or activity in selected restricted indoor areas, such as storage rooms, plant rooms, workshops or other areas where access should be restricted.

Need Now Need Later Not Needed

**A03 — Outdoor Movement Detection** Detect people or activity in selected outdoor areas, such as driveways, entrances and side passages, before they reach the building.

Need Now Need Later Not Needed

**A04 — Outdoor Restricted Area Detection** Detect movement or entry in selected restricted outdoor areas, such as swimming pool surrounds, equipment compounds, storage yards or other areas where access should be restricted.

Need Now Need Later Not Needed

HOW WOULD YOU LIKE TO PROCEED?

You can explore the detection functions yourself or have CustomLink guide you through the available options.

Please choose how you would like to proceed.

How would you like to proceed? *

COMPLETE THE CHECKLIST MYSELF — I would like to explore the detection functions, make my selections and receive a copy by email for my records. HAVE CUSTOMLINK GUIDE ME — I would prefer CustomLink to contact me and walk me through the available detection functions and options.

Message for CustomLink (optional)

INDOOR DETECTION

**A05 — Photoelectric Beam Detection** Detect when someone or something crosses a monitored beam at an entrance, passage or property boundary.

Need Now Need Later Not Needed

**A06 — Outdoor Multi-Layer Detection** Use multiple detectors across different areas of the property to detect activity as someone moves from one monitored area to another. For example, detection at the property boundary, further inside the property and near the building can provide several opportunities for early warning before an intruder enters. Different detection technologies can be combined according to the property's layout and protection requirements.

Need Now Need Later Not Needed

OUTDOOR DETECTION

**A07 — Door & Window Monitoring** Detect when selected entry doors, sliding doors or windows open or close.

Need Now Need Later Not Needed

**A08 — Garage-Door Status Monitoring** Detect whether selected garage doors are open or closed, including when they remain open longer than expected.

Need Now Need Later Not Needed

**A09 — Vehicle & Pedestrian Gate Monitoring** Detect whether selected external gates are open or closed.

Need Now Need Later Not Needed

**A10 — Shock & Vibration Detection** Detect selected impacts or vibration on doors, windows or other suitable surfaces.

Need Now Need Later Not Needed

DOORS, WINDOWS & OTHER SENSORS

**A11 — Person Detection** Use compatible intelligent cameras to identify people entering or leaving monitored areas.

Need Now Need Later Not Needed

**A12 — Vehicle Detection** Identify vehicles entering or leaving selected monitored areas.

Need Now Need Later Not Needed

**A13 — Virtual Line Crossing Detection** Detect when a person or vehicle crosses a programmed line within a camera's field of view.

Need Now Need Later Not Needed

INTELLIGENT VIDEO DETECTION

**A14 — Face Recognition** Recognise enrolled people, such as selected family members, employees or other authorised individuals, using compatible cameras.

Need Now Need Later Not Needed

**A15 — Vehicle Number Plate Recognition (ANPR)** Recognise selected registered vehicles and provide arrival or access-related detection events.

Need Now Need Later Not Needed

**A16 — Abnormal Heat Detection** Detect when a monitored area, object or piece of equipment exceeds a programmed temperature limit.

Need Now Need Later Not Needed

**A17 — Multiple Temperature Monitoring Areas** Use a suitable thermal camera to monitor multiple areas within its field of view, each with a separately programmed temperature limit.

Need Now Need Later Not Needed

**A18 — People Detection in Darkness** Detect people through their heat signatures without relying on normal visible-light images.

Need Now Need Later Not Needed

THERMAL DETECTION

**A19 — Long-Distance Thermal Detection** Monitor people or activity across suitable large outdoor areas or property boundaries.

Need Now Need Later Not Needed

**A20 — Intercom Call Detection** Receive an event when someone presses a connected intercom call button.

Need Now Need Later Not Needed

**A21 — Intercom Door or Gate Unlock Events** Receive an event when an entrance is unlocked through a compatible intercom system.

Need Now Need Later Not Needed

**A22 — Water Level Detection** Detect when a water tank, pit or other monitored area reaches selected high or low water levels.

Need Now Need Later Not Needed

**A23 — Water Flow Detection** Detect when water starts or stops flowing, including selected abnormal flow conditions.

Need Now Need Later Not Needed

**A24 — Water Leak Detection** Detect water leaks in selected rooms or areas.

Need Now Need Later Not Needed

**A25 — Rain Detection** Detect rainfall through a suitable connected rain sensor.

Need Now Need Later Not Needed

**A26 — Temperature Monitoring** Detect when selected rooms, spaces or equipment become hotter or colder than programmed limits.

Need Now Need Later Not Needed

OTHER SENSORS & CONNECTED EQUIPMENT

**A27 — Fire-Detection System Events** Receive selected events from compatible fire-detection equipment, while legally required fire-safety systems remain separate and compliant.

Need Now Need Later Not Needed

**A28 — Equipment Operating Status** Monitor whether selected connected equipment is running, stopped or reporting an abnormal operating condition.

Need Now Need Later Not Needed

**A29 — Power Failure Detection** Detect selected power-supply failures.

Need Now Need Later Not Needed

**A30 — System & Equipment Fault Detection** Detect selected faults involving the security system or connected equipment.

Need Now Need Later Not Needed

**A31 — Expected Activity Monitoring** Detect when expected movement or activity has not occurred within a programmed period, such as no movement in an elderly person's room.

Need Now Need Later Not Needed
